Camera Adapters

How do you attach your camera?

Over the years, Optec has developed dozens of adapters and custom fittings for various cameras and mounts. While most astronomical cameras have a female T-thread mount, many of the larger chip cameras are now being offered with even larger mechanical interfaces, such as the relatively new 3-inch 24tpi female mount available on Apogee, SBIG, and a modified version on the FLI cameras. However, there are a variety of other mounts such as the STL 4-bolt mount.

We classify our camera mounts by the size and shape of the "telescope" side mechanical interface for a typical configuration. These mounts correspond to many of our astronomy products. For example:

• OPTEC-2300 Camera Adapters for use with the Pyxis rotator, IFW Universal Mounting Ring, and Perseus 4-port parfocalizing rings.
• The OPTEC-2300 circular dovetail mount is used for the TCF-S focuser and IFW filter wheel to allow easy connections from most any camera. If your scope or accessory is not listed, do not hesitate to call.
• OPTEC-2380 Mounting Rings are threaded mounts for use with the IFW and MAXfilter systems.
• The OPTEC-2380 circular dovetail mount is used for the IFW Intelligent Filter Wheel and Perseus 4-port selector parfocalizing rings to attach most cameras and accessories.
• OPTEC-3000 Dovetail Mounts for use with the 3-inch TCF-S3, Pyxis 3", and IFW-3.

OPTEC-3000 3-inch Mounts

3-inch Adapters for the TCF-S3", Pyxis 3" and IFW 3"

Optec 3-inch "Push-Fit" Mount

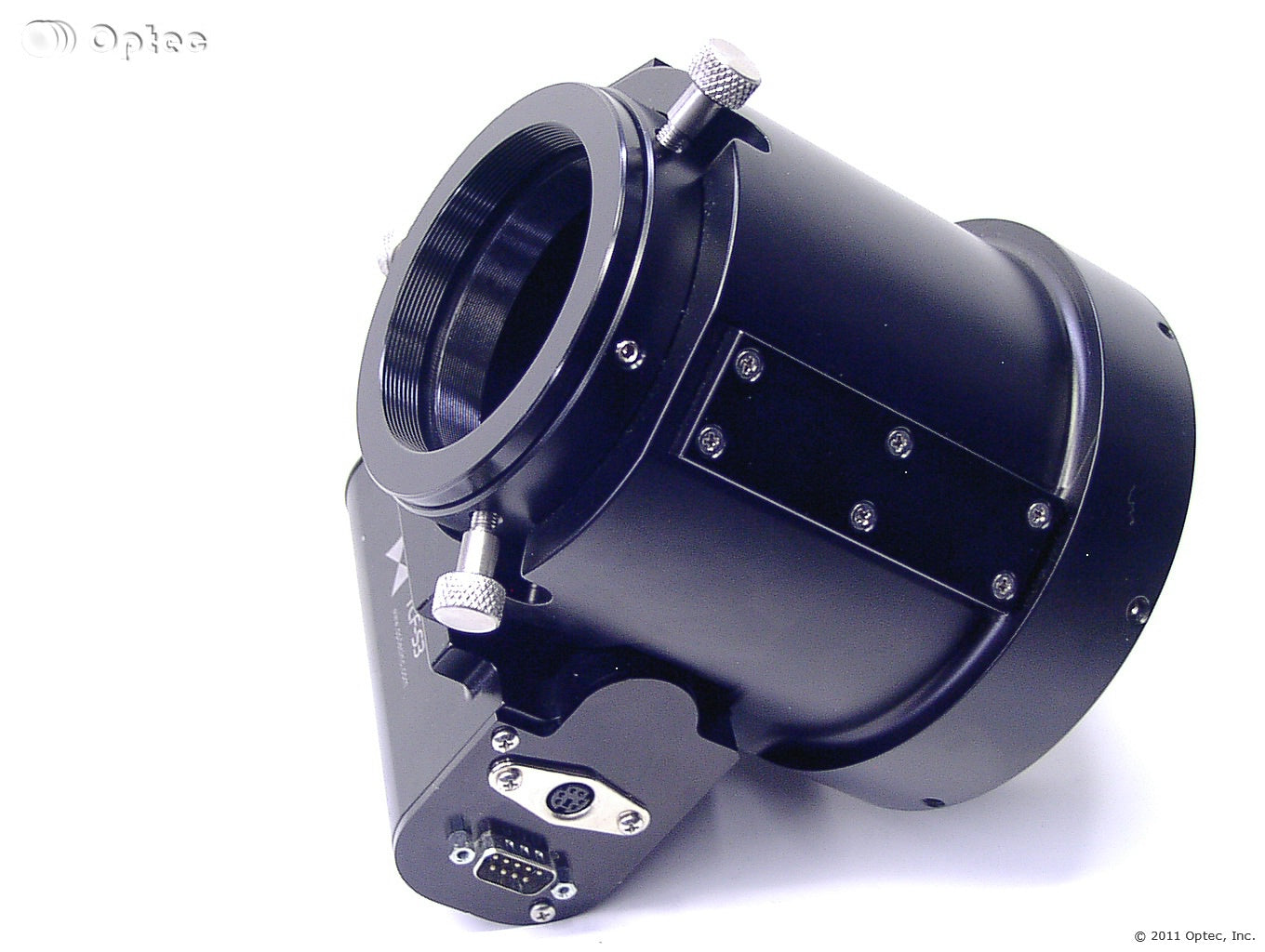

The OPTEC-3000 3-inch mounts "push-fit" into any 3-inch receiver including the TCF-S3, IFW-3 #17367 Rear Cover Plate, and Pyxis 3" rotator. Similar to a 2-inch eyepiece barrel or 2-inch camera nosepiece, the OPTEC-3000 series appears as a 3-inch nosepiece for convenient, yet secure mounting. All the OPTEC-3000 mounts have a machined dovetail to match the thumbscrews, setscrews, and other mounting hardware for all our 3-inch product line.

If your camera or accessory is not listed, do not hesitate to call. We are constantly adding new adapters to our catalog.

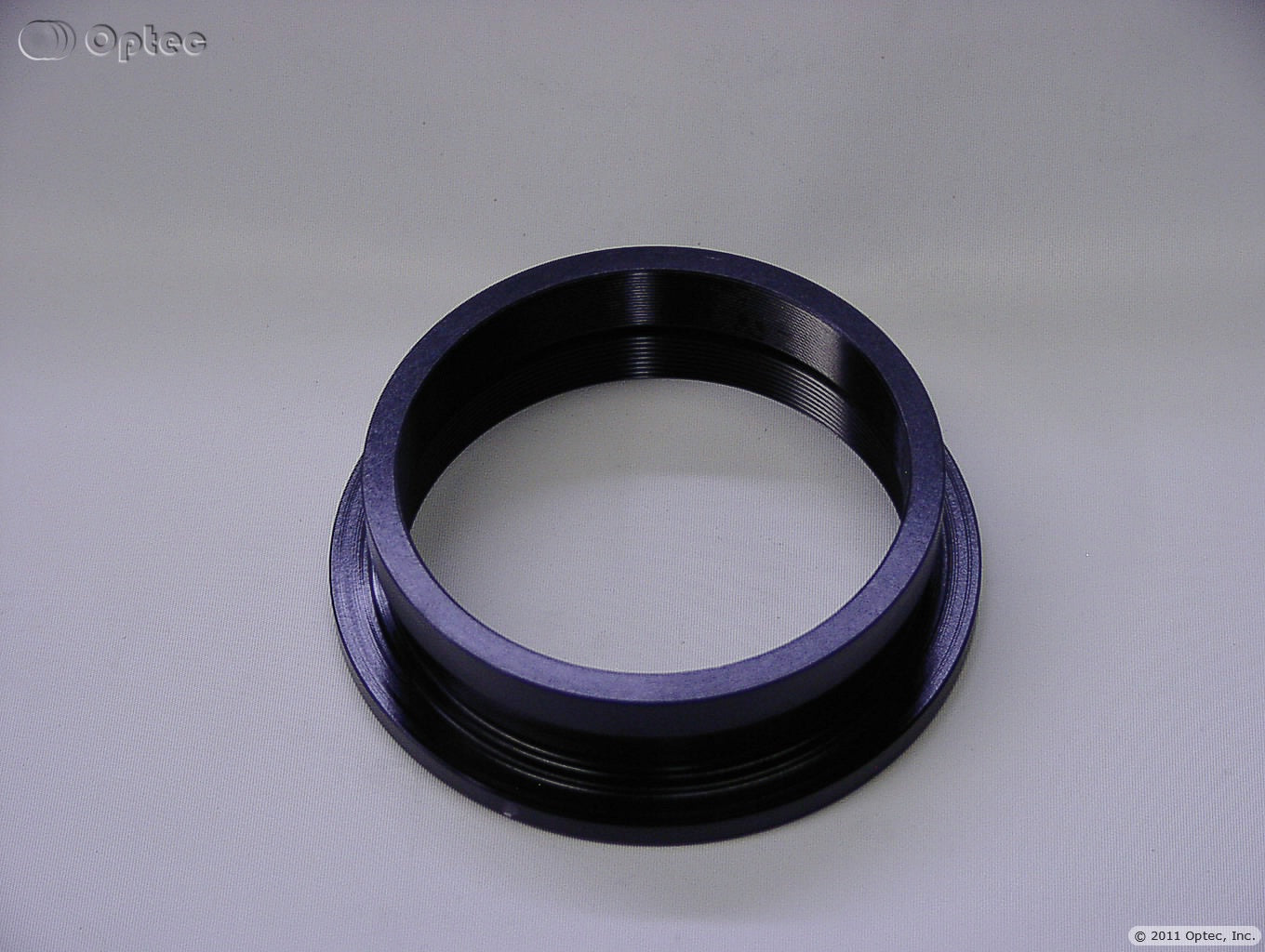

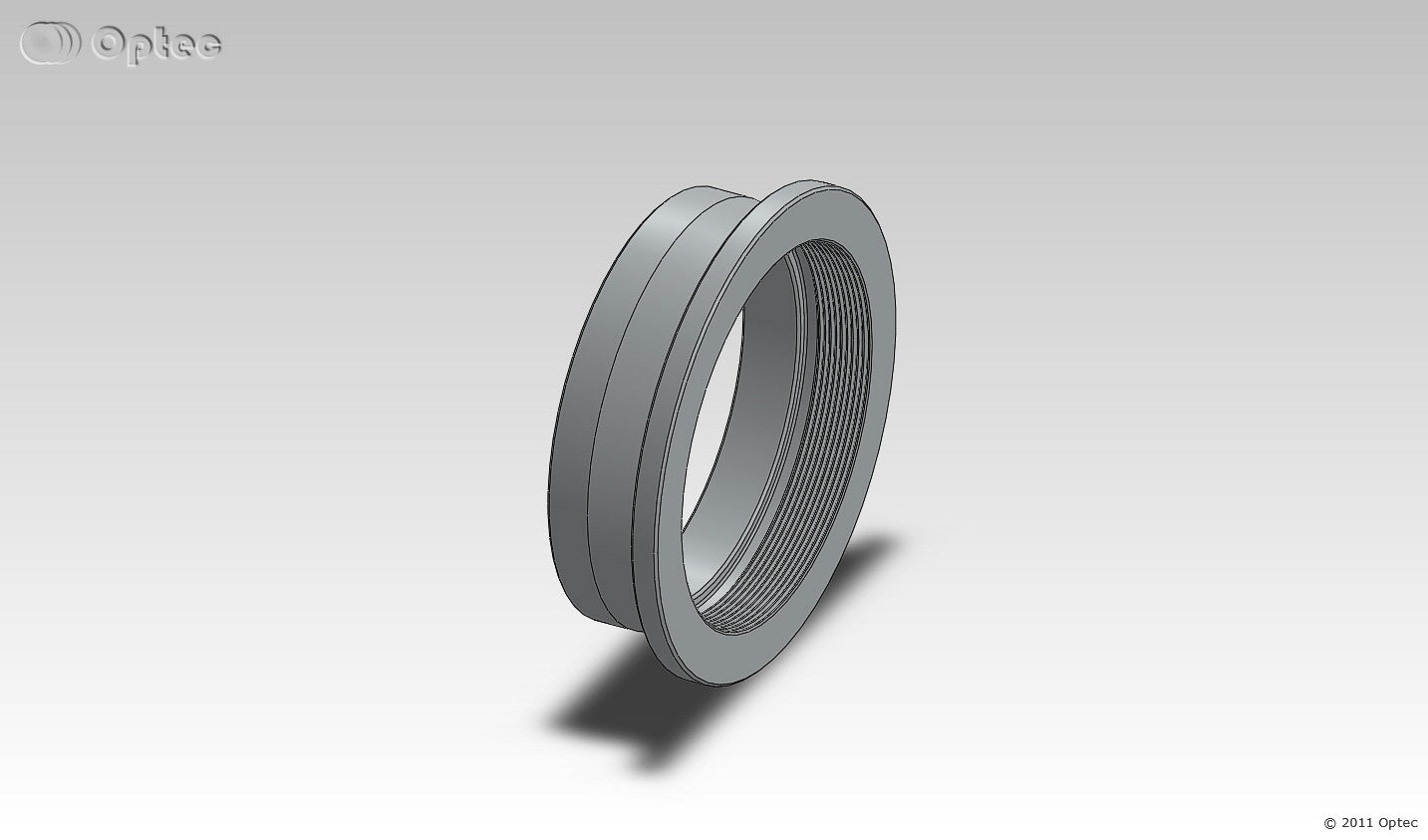

#17807 - 3" Drawtube Adapter To AstroPhysics 2.7" (AP2.7) Female Threaded Mount

The #17807 OPTEC-3000 3-inch to AstroPhysics 2.7" x 24tpi Mount adapts any Optec 3-inch receiver to accept an Astro-Physics 2.7-inch male thread.

This adapter allows the use of any of the Optec AP2.7 spacers with any Optec 3-inch device including the TCF-S3 series focusers, Pyxis 3" rotator, or IFW-3.

Specifications

• Outside Diameter:  3.45" (87.6mm)
• Overall Height: 0.95" (24.1mm)
• Clear Aperture:  2.6"  (66mm)
• Weight: 2.72 oz (77 g)
• Back-focus Usage: 0.2" (5.1mm)
• Telescope Side:  OPTEC-3000 Dovetail
• Camera Side:  Female AP 2.7" Thread

Telescope-Side Compatibility:

• Optec TCF-S3, TCF-S3i, TCF-Lynx3 focuser,
• Pyxis 3" #17745 or #17747 rotator,
• IFW-3 with #17367 rear-cover plate,
• Perseus 4-port selector with #19880 receiver adapter.

Camera-side Compatibility:

• Optec AP2.7 spacers,
• Any Astro-Physics AP2.7 x 24tpi male threaded accessory.
